Non - Inverting Amplifier

Calculations & Observations


Fig.1 Non - Inverting Amplifier circuit

Then using the formula to calculate the output voltage of a potential divider network, we can calculate the closed-loop voltage gain (A V) of the Non-inverting Amplifier as follows:


Ideal summing point V1 = Vin

Voltage gain, A (v) is equal to:

then,

Transpose to give:

Then the closed loop voltage gain of a Non-inverting Amplifier is given as:

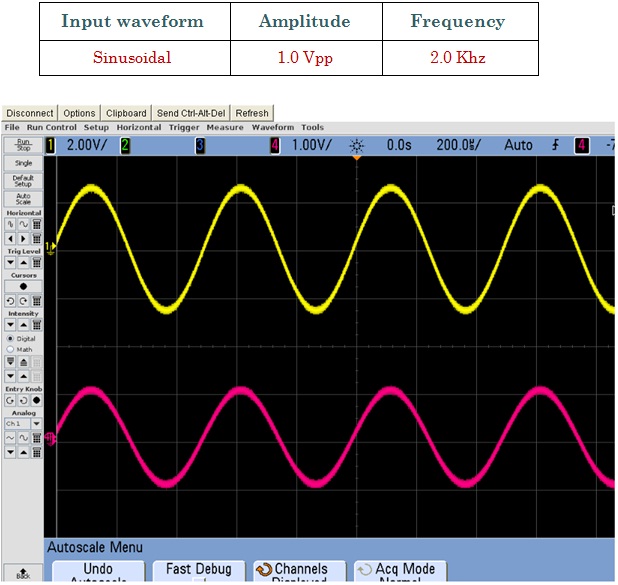

Fig.2 Shows Input signal (Red wave form) and Output (Yellow Waveform)


Fig.3 Shows Input signal (Red wave form) and Output (Yellow Waveform)
