Diode Limiter


Questionnair


Q.1     What is the function of a Limiter circuit?
A)    Regulate the DC voltage output level.
B)    Limit the amplitude of any waveform to a predetermined level.
C)    Maintain the reference level at a constant value.
D)    Limit the frequency to a predetermined value.
Ans : B

Q.2    What component is the basis of limiter circuit?
A)    Resistor
B)    Capacitor
C)    Diode
D)    Inductor
Ans : C

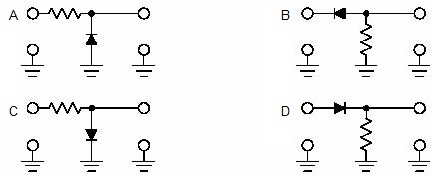

Q.3    From the illustrations below, select the series negative limiter?

Ans : D

Q.4     From the illustrations below, selct the parallel negative limiter with positive bias?
Ans : D

Q.5    Using the illustrations in Question 4, select the correct output waveform for a parallel negative limiter with positive bias?
Ans : B
