Full Wave Rectifier
Calculations & Observations
Efficiency of Rectification:
For a half wave rectifier η ~ 0.406 = 40.6 %
For a full wave rectifier, the one used here is η ~ 0.812 = 81.2 %.
Fig.1 hows Input Signal (Red) and Output Signal (Yellow) of Full Wave Rectifier

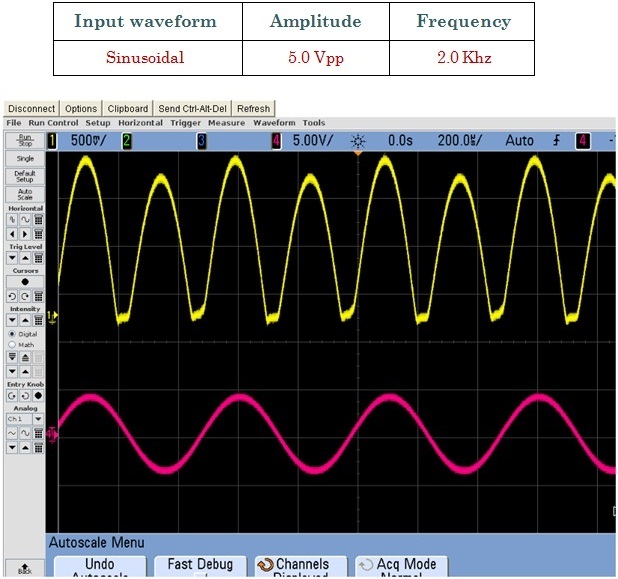

Fig.2 Shows Input Signal (Red) and Output Signal (Yellow)

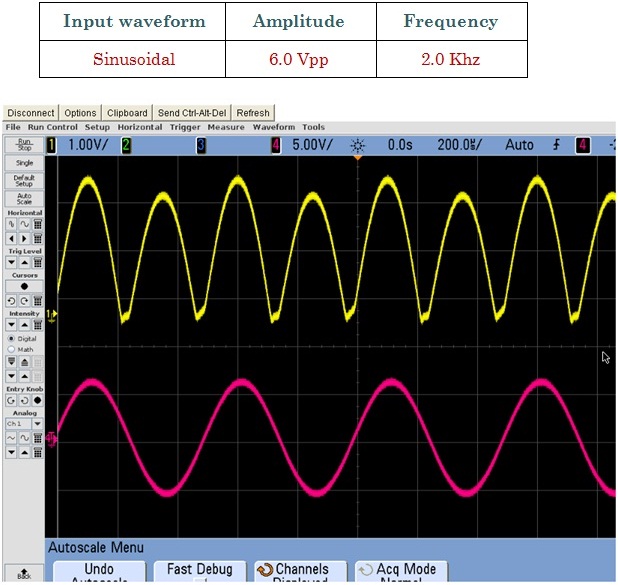

Fig.3 Shows Input Signal (Red) and Output Signal (Yellow)
